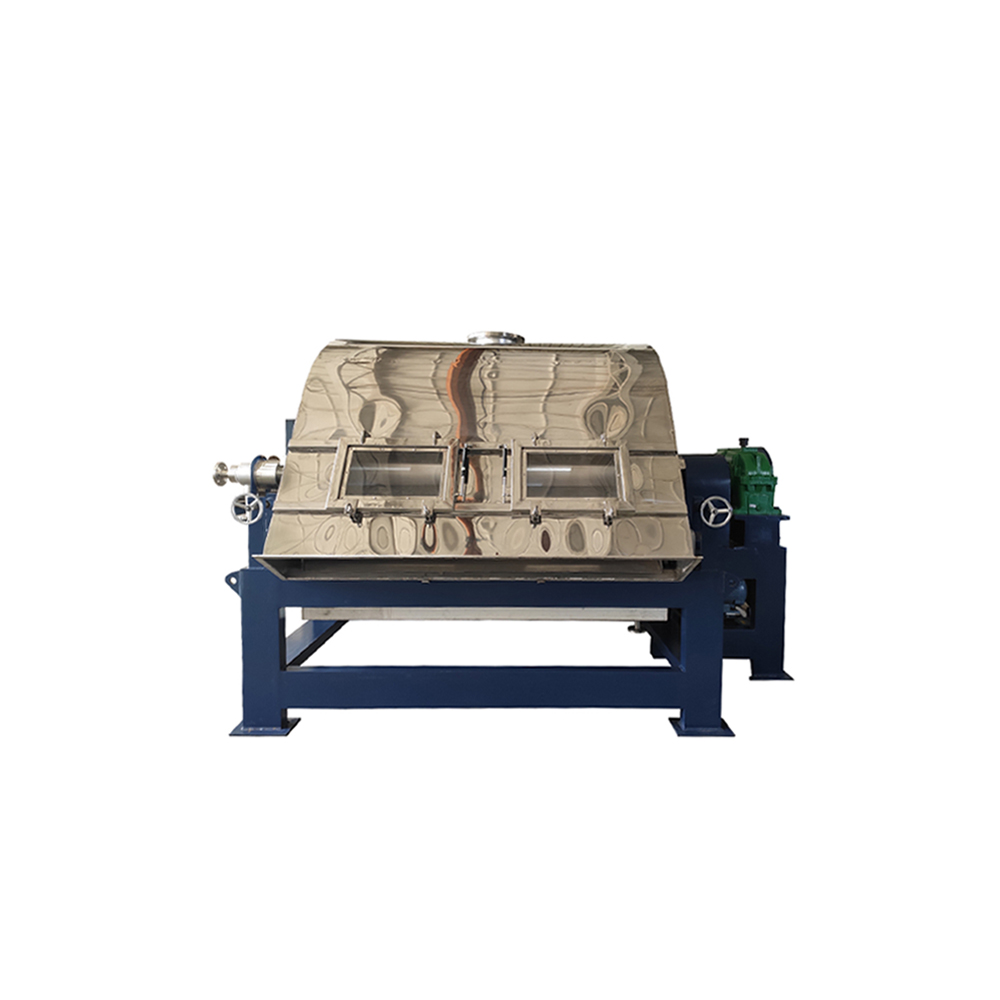

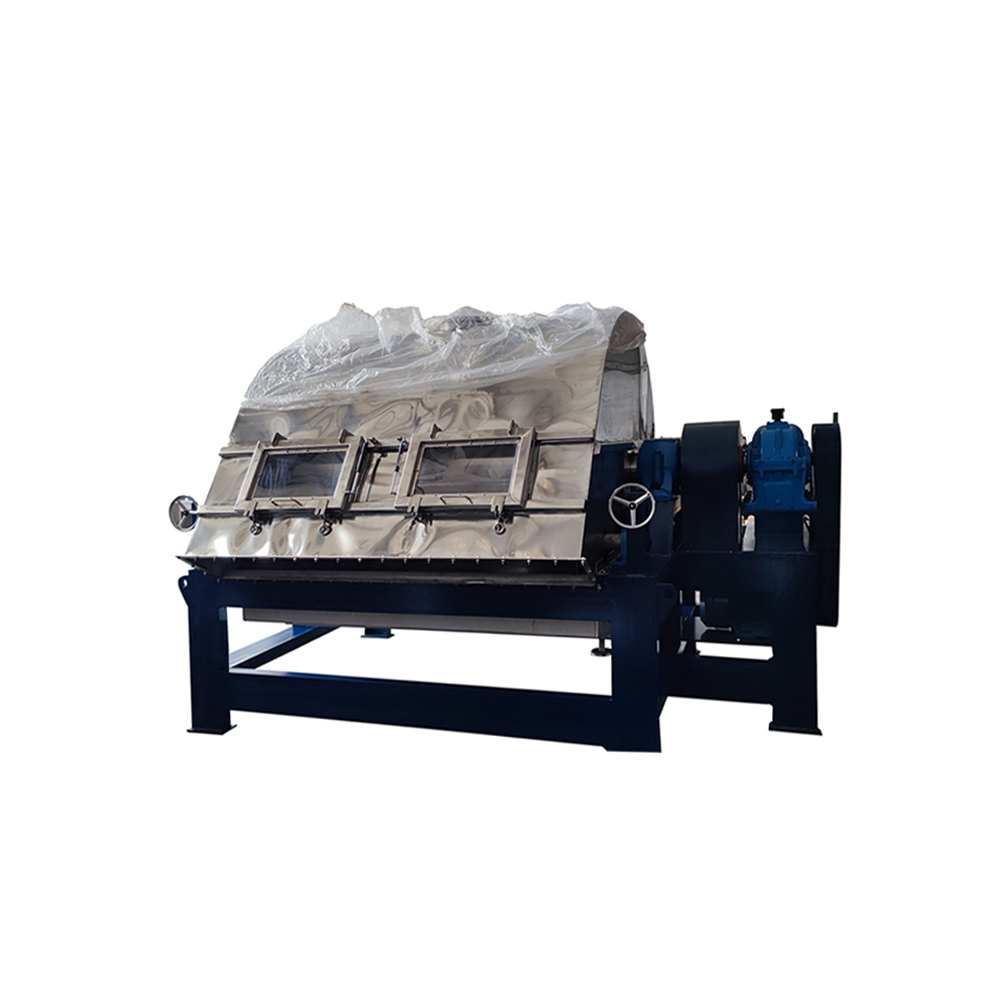

A single drum flaker is a highly efficient industrial machine used to solidify molten materials into dry, solid flakes in a single, continuous operation. It achieves this by applying a thin film of the liquid to a rotating, cooled drum, where it solidifies before being scraped off by a blade.
The single drum flaker operates through a continuous, four-step cycle:
1) Feeding: The hot, molten material is evenly applied to the surface of a rotating, horizontal drum. The feed method (e.g., a dip tray for low-viscosity liquids or an applicator roller for pastes) depends on the product's properties.
2) Cooling and Solidification: As the drum rotates, its interior is continuously cooled using water, brine, or another coolant. This rapidly draws heat through the drum's shell, causing the thin film of product on the outside to solidify.
3) Scraping and Discharging: A precisely adjustable "doctor blade" or scraper knife scrapes the solidified product off the drum's surface. This produces flakes of a uniform, controllable thickness that fall into a discharge chute.
4) Collection: The final dry flakes are then collected by a hopper or conveyor for packaging or further processing.
1) Single-Step Process: Directly converts molten material into solid flakes in one efficient, continuous operation, reducing handling steps.
2) High Product Yield: Designed to recover nearly 100% of the product as a solid flake, which minimizes waste and maximizes output.
3) Superior Flake Uniformity: Provides consistent control over flake thickness and quality, which is critical for downstream applications or product specifications.
4) Energy Efficient: Achieves a high rate of heat transfer with relatively low energy consumption compared to other drying methods.
5) Versatility: Can handle a wide range of materials, including low to high-viscosity liquids, pastes, and products with melting points from ambient to over 300°C.
6) Clean Operation: The enclosed design helps minimize operator exposure to hot materials and contains dust or toxic vapors.
Single drum flakers are versatile and used across many industries:
1) Chemicals & Petrochemicals: To solidify fatty acids, waxes, resins, caustic soda, calcium chloride, and zinc stearate.
2) Food & Oleochemicals: For processing palm stearin, hydrogenated vegetable fats, lecithin, and food additives.
3) Pharmaceuticals: To produce solid flakes of pharmaceutical compounds and intermediates.
4) Specialty Products: For manufacturing textile softeners, plastic stabilizers, soaps, and detergents.
 |  |
No. | Customer's company name | Product | Capacity | Country/Qty |
1 | PT. ASIANAGRO AGUNGJAYA | Stearic acid | 2000kg/h | |
2 | PT GOLDSCHMIDT SUMI ASIH | Softener | 1000kg/h | Indonesia/1 set |
3 | KLK OLEO | Stearic acid | 2000kg/h | Malaysia/1 set |
4 | KERAX LIMITED | Wax | 1000kg/h | UK/2 sets |
5 | DONG-SUH CHEMICAL IND. CO., LTD | Industrial naphthalene | 2000kg/h | Korea/3 sets |
6 | PCC ROKITA SA | Chloroacetic acid | Poland/1 set | |
CABB GMBH | 1500kg/h | |||
8 | CABB GMBH | Chloroacetic acid | 1500kg/h | 3 sets drum |
 |  |
Wuxi Rising Machinery Co., Ltd. is a professional manufacturer of chemical equipments established in 2010. The company is equipped with a skilled team of professionals specializing in various processes, welding, production, and quality inspection, as well as advanced production and testing equipment. It has obtained ISO9001 quality management system certification.
Located in the southern suburbs of Wuxi City, near the scenic Taihu Lake area and Jiangnan University, our company collaborates closely with Jiangnan University and other specialized design institutes. We are a comprehensive enterprise integrating research, development, production, and salesour company collaborates closely with Jiangnan University and other specialized design institutes. We are a comprehensive enterprise integrating research, development, production, and sales.
 |  |  |  |
